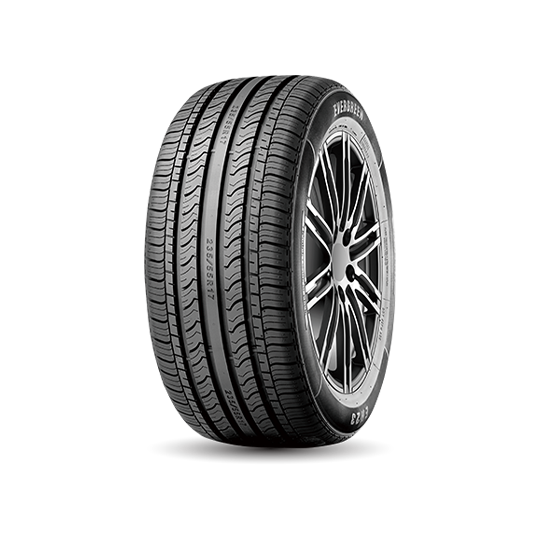

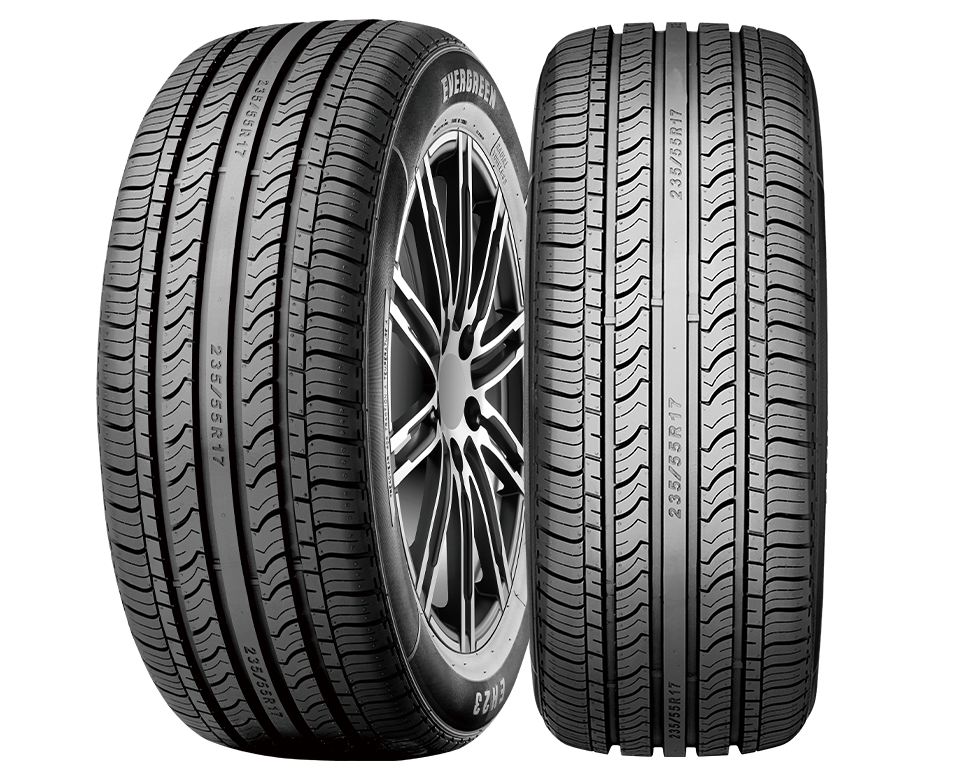

EH23

T/H/V/W Rated

U.T.Q.G 400/A/A

50/55/60/65/70 Series

A pattern specially designed to elevate the performance of traction and manipulation on wet & dry roads.

14" Inch Tyres

165/65R14

175/65R14

185/50R14

185/55R14

185/60R14

185/65R14

195/60R14

195/65R14

15" Inch Tyres

175/55R15

175/65R15

185/55R15

185/60R15

195/45R15

195/50R15

195/55R15

195/60R15

195/65R15

205/50R15

205/60R15

205/65R15

215/60R15

215/65R15

215/70R15

225/60R15

16" Inch Tyres

195/50R16

195/55R16

195/60R16

205/55R16

205/60R16

215/60R16

215/65R16

235/60R16

17" Inch Tyres

215/55R17

225/60R17

225/65R17

235/55R17

×

Inch	Size	LI	SR	XL	Tread Depth (mm)	Standard Rim	Section Width (mm)	Overall Diameter (mm)	Pressure (Kpa)	Sidewall	Rim Protector	Plant
14"	165/65R14	79	T		7.6	5J	170	570	300	BSW		CN
14"	175/65R14	82	T		8	5J	177	584	300	BSW		CN
14"	175/65R14	86	T	XL	8	5J	177	584	340	BSW		CN
14"	185/50R14	77	V		8	6J	194	542	300	BSW		CN
14"	185/55R14	80	V		8	6J	194	560	300	BSW		CN
14"	185/60R14	82	H		8.4	5½J	189	578	300	BSW		CN
14"	185/65R14	86	H		8	5½J	189	596	300	BSW		CN
14"	195/60R14	86	H		8.4	6J	201	590	300	BSW		CN
14"	195/65R14	89	H		8	6J	201	610	300	BSW		CN
15"	175/55R15	77	T		7.8	5½J	182	573	300	BSW		CN
15"	175/65R15	84	H		8	5J	177	609	300	BSW		CN
15"	185/55R15	82	V		8	6J	194	585	300	BSW		CN
15"	185/60R15	84	H		8	5½J	189	603	300	BSW		CN
15"	185/60R15	88	H	XL	8	5½J	189	603	340	BSW		CN
15"	185/65R15	88	H		8	5½J	189	621	300	BSW		CN
15"	185/65R15	92	H	XL	8	5½J	189	621	340	BSW		CN
15"	195/45R15	78	V/W		7.8	6½J	195	557	300	BSW	Y	CN
15"	195/50R15	82	V		8	6J	201	577	300	BSW		CN
15"	195/55R15	85	V		8	6J	201	595	300	BSW		CN
15"	195/60R15	88	V/H		8.4	6J	201	615	300	BSW		CN
15"	195/65R15	91	V/H		8	6J	201	635	300	BSW		CN
15"	195/65R15	95	T	XL	8	6J	201	635	340	BSW		CN
15"	205/50R15	86	V		8	6½J	214	587	300	BSW	Y	CN
15"	205/60R15	91	V		8.5	6J	209	627	300	BSW		CN
15"	205/60R15	95	H	XL	8.5	6J	209	627	340	BSW		CN
15"	205/65R15	94	V		8.5	6J	209	647	300	BSW		CN
15"	215/60R15	98	V	XL	8.5	6½J	221	639	340	BSW		CN
15"	215/65R15	96	V		8.8	6½J	221	661	300	BSW		CN
15"	215/70R15	98	H		8.5	6½J	221	683	300	BSW		CN
15"	225/60R15	96	V		8.6	6½J	228	651	300	BSW		CN
16"	195/50R16	88	V	XL	8	6J	201	602	340	BSW		CN
16"	195/55R16	87	V		8	6J	201	620	300	BSW		CN
16"	195/55R16	91	V	XL	8	6J	201	620	340	BSW		CN
16"	195/60R16	89	V		8.4	6J	201	640	300	BSW		CN
16"	205/55R16	91	V/W		8	6½J	214	632	300	BSW	Y	CN
16"	205/55R16	94	V	XL	8	6½J	214	632	340	BSW	Y	CN
16"	205/60R16	92	V		8.2	6J	209	652	300	BSW		CN
16"	215/60R16	95	V		8.8	6½J	221	664	300	BSW		CN
16"	215/65R16	98	H		8.8	6½J	221	686	300	BSW		CN
16"	215/65R16	98	H		8.8	6½J	221	686	300	BSW		CN
16"	235/60R16	100	V		8.8	7J	240	688	300	BSW		CN
17"	215/55R17	94	V		8.2	7J	226	668	300	BSW	Y	CN
17"	215/55R17	98	V	XL	8.2	7J	226	668	340	BSW	Y	CN
17"	225/60R17	98	T		9.5	6½J	228	702	300	BSW	Y	CN
17"	225/65R17	102	H		8.4	6½J	228	724	300	BSW		CN
17"	235/55R17	98	H		9.5	7½J	245	690	300	BSW	Y	CN
